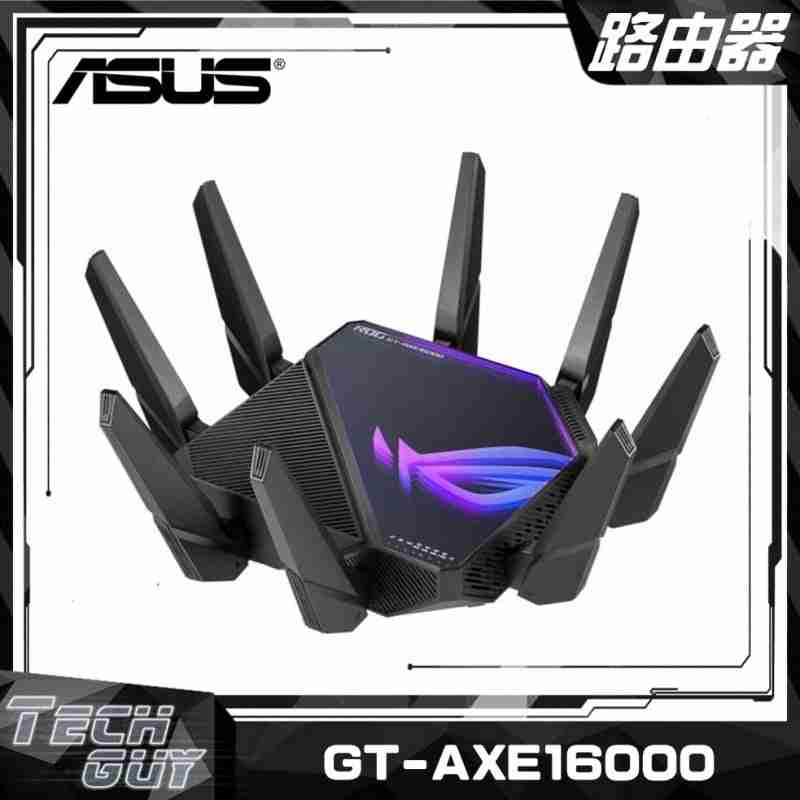

ASUS ROG Rapture【GT-AXE16000】四頻 WiFi 6E 電競路由器

Model Name
GT-AXE16000
Network Standard
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
AXE16000 ultimate AX/AXE performance
AX technology
Yes
Data Rate
2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
6GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
External antenna x 8 (non-detachable)
Internal antenna x 4
Transmit/Receive
2.4GHz 4×4
5GHz-1 4×4
5GHz-2 4×4
6GHz 4×4
Processor
2.0GHz quad-core processor
Memory
256MB NAND flash and 2GB DDR4 RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz
Ports
1 x 2.5 Gigabit WAN Port
2 x 10 Gigabit WAN/LAN Ports
4 x Gigabit LAN Ports
1 x USB 3.2 Gen 1 Port
1 x USB 2.0 Port
Button
WPS Button, LED Button, Reset Button, Power Switch
LED Indicator
Power x 1
2.4G x 1
5GHz-1  x 1
5GHz-2  x 1
6G x 1
10GE Port x 1
LAN x 1
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current
Package content
GT-AXE16000 WiFi Gaming Router
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
2425
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Game
Game Boost/acceleration
Game Radar
WTFast
ROG_First
OpenNAT (Game Profile)
Alexa
Support Alexa skill
AiProtection
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile :
64
Maximum Parental Control content filter rule :
64
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule :
32
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period :
Daily, Weekly, Monthly
Website history
Wireless
IPv6
MU-MIMO
WiFi Encryption :
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE
UTF-8 SSID
Guest Network
Maximum Guest Network rule :
2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3
Guest Network Connection time limit
Guest Network Encryption :
Open system, WPA/WPA2-Personal/WPA3-Personal
WPS
Wi-Fi MAC address filter
Maximum MAC filters :
64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
WAN
Explicit beamforming
Internet connection Type :
Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule :
64
Port triggering
Maximum port triggering rule :
32
DMZ
DDNS
NAT Passthrough :
PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
Let’s Encrypt
Safe browsing
DNS-over-TLS
LAN
DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule :
128
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
USB application
File System :
HFS+, NTFS, vFAT, ext2, ext3, ext4
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode :
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Operating system :
ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter :
64
Maximum Firewall network service filter :
32
Maximum Firewall URL filter :
64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
